Bearing Hinge Set for Heavy Gates 400kg

Exceptional 400kg Load Capacity
Bearing hinge set designed specifically for the heaviest gate constructions. Maximum load capacity of 400kg enables safe installation of massive steel gates, industrial gates, and heavy wickets. Stability and strength guaranteed even with intensive use.

Precision Ball Bearings
Equipped with high-quality ball bearings ensuring minimal friction and smooth rotation for years of operation. Eliminate resistance when opening and closing even the heaviest wings. Silent operation and no need for frequent maintenance.

Complete Upper and Lower Set

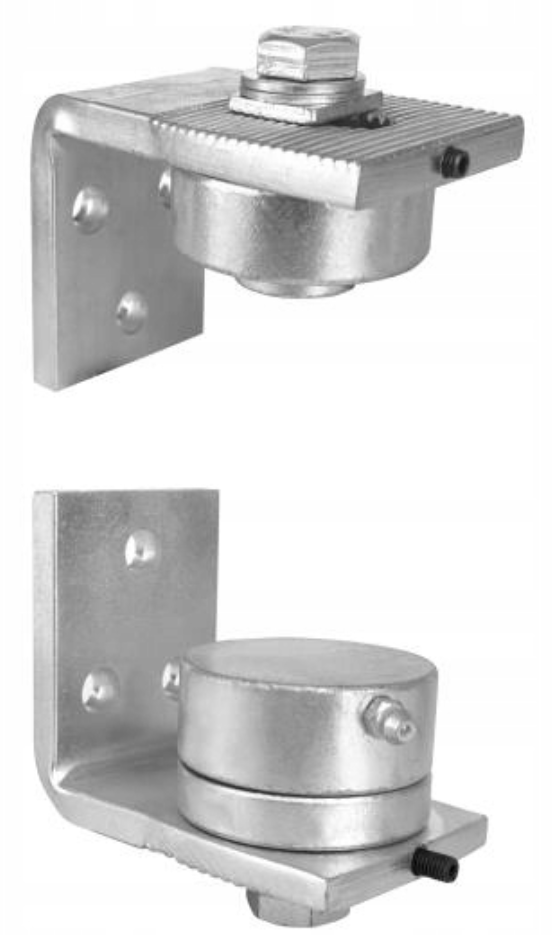

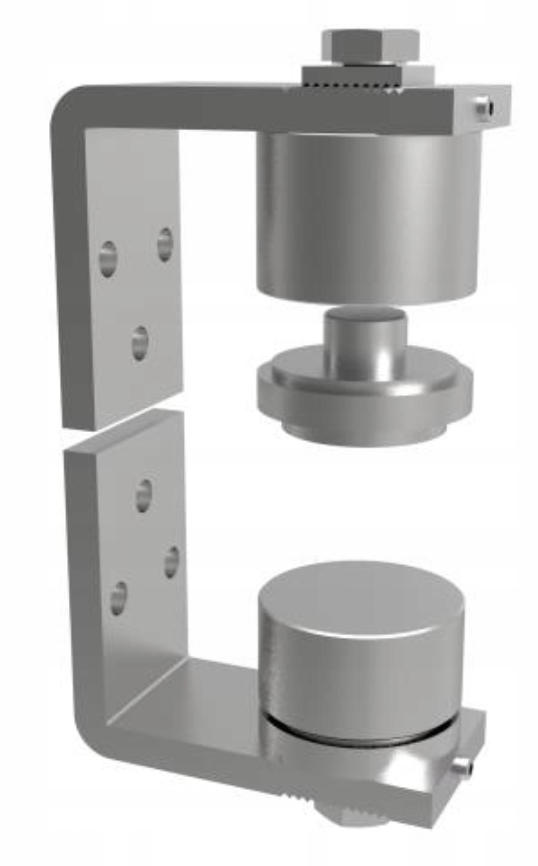

Complete set contains:

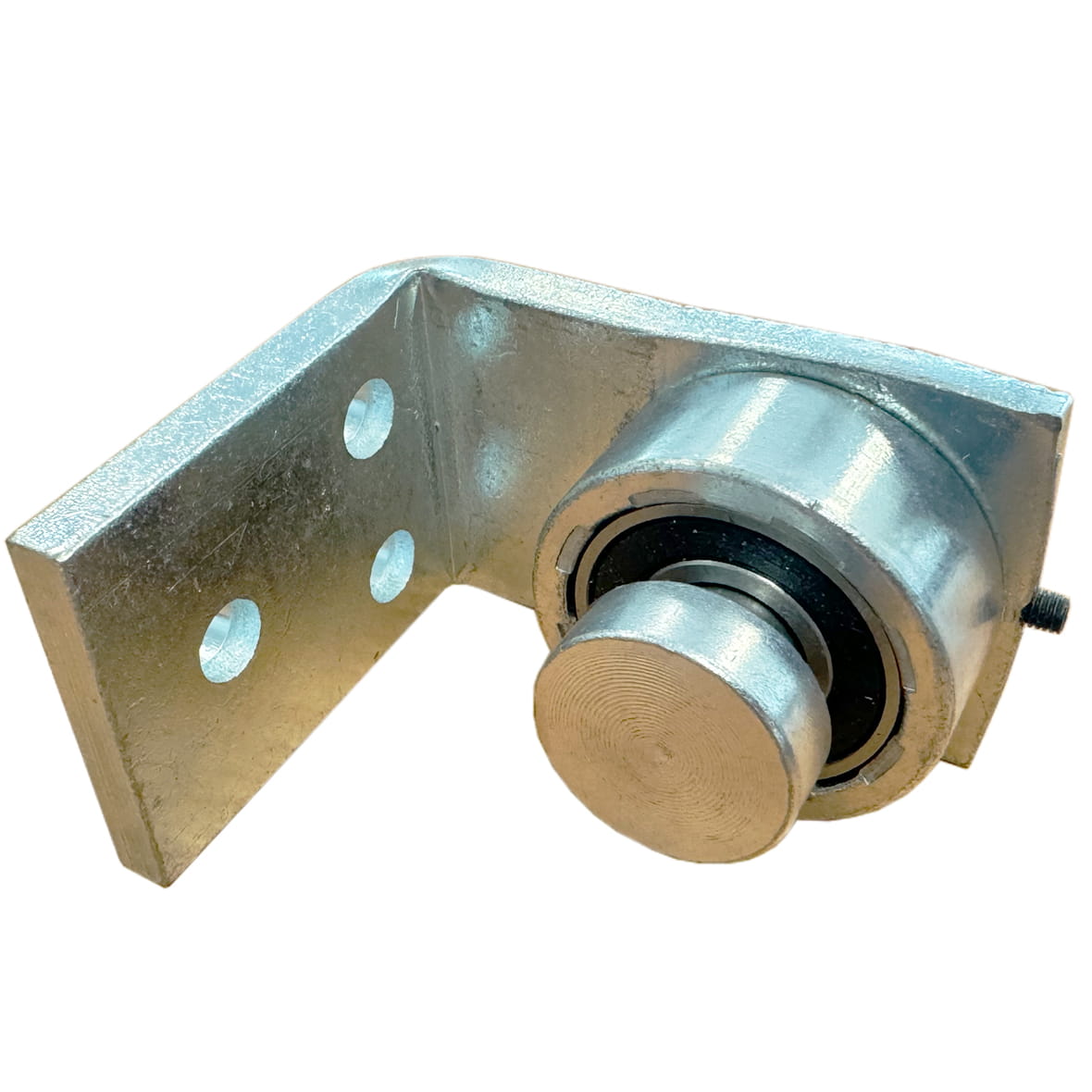

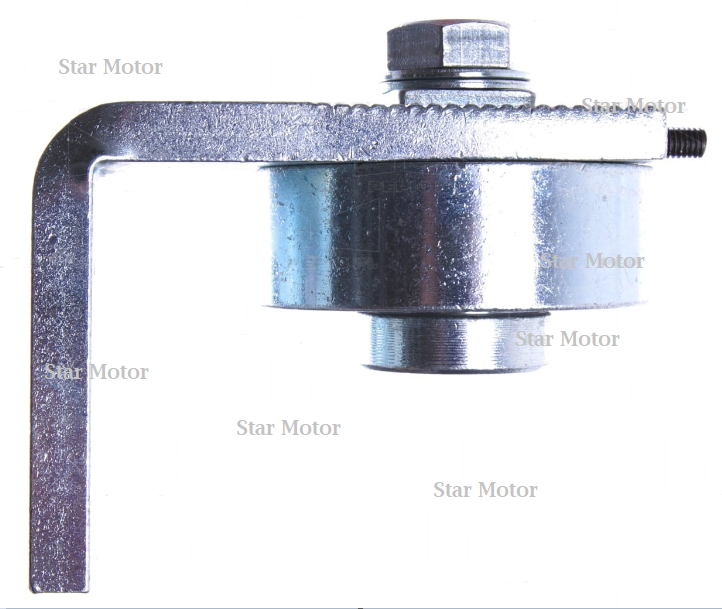

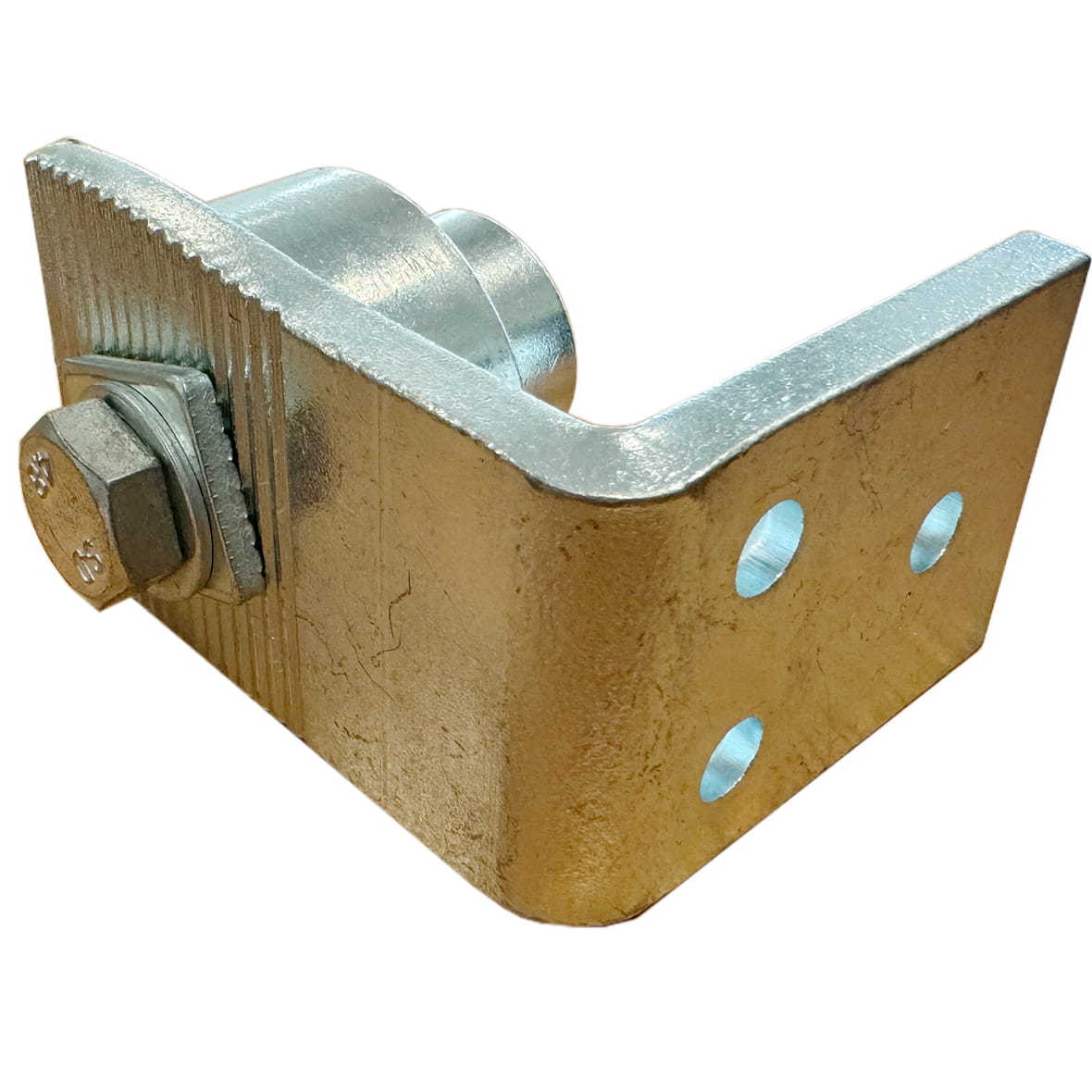

• Upper hinge TWHL50 - top part with bearing

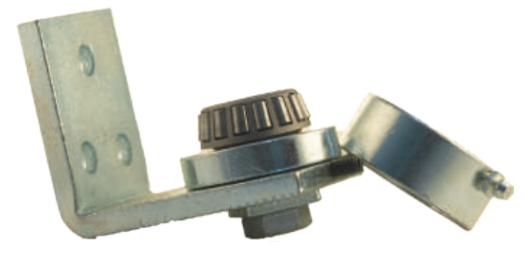

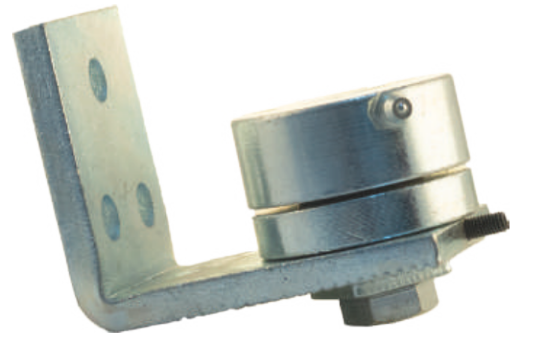

• Lower hinge BWHL50 - bottom part with bearing
Perfectly matched components ensuring full compatibility and optimal system performance.

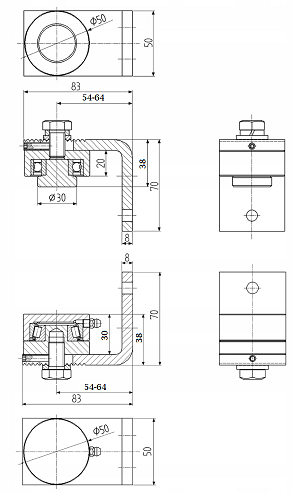

Massive 50mm Pin
Shaft with 50mm diameter guarantees maximum stability and long-term construction durability. Large diameter distributes loads and prevents deformation. Total height of 70mm ensures adequate mounting clearance.

Hot-Dip Galvanizing
Zinc coating applied by hot-dip method provides complete protection against corrosion in harsh weather conditions. Corrosion resistance class C3 according to PN-EN ISO 12944 standard. Durability in all outdoor conditions.

Screw Mounting
Professional installation with screws without welding requirements. Facilitates installation and enables future replacement. Opening angle up to 120° ensures convenient operation.

Specifications

Applications

• Heavy steel gates up to 400kg
• Industrial swing gates
• Massive garden wickets
• Single-wing gates up to 2.5m
• Constructions requiring bearing support
• Industrial and commercial installations
